DashboardProperties Displayer Macro
Última modificação por JOSE RONALDO DOS ARAUJO em 11/04/2024
This macro displays a block with properties name and corresponding values from an object. As an example, it can be used in class sheets.
Example of usage
(% class="row" %)
(((
{{propertiesDisplayer className="Help.Applications.Movies.Code.MoviesClass" title="" backgroundColor="white" properties="title1, longText1" propertyNameClasses="col-sm-12" propertyValuesClasses="col-sm-12" blockClasses="col-sm-8" /}}
{{propertiesDisplayer className="Help.Applications.Movies.Code.MoviesClass" title="Properties" titleStyle="text-align: center; font-size: 16px; font-weight: bold; margin-top: 15px; margin-bottom: 10px;" properties="staticList1, databaseList1, date1, number1, boolean1" blockClasses="col-sm-4" propertyNameClasses="col-sm-3" propertyValuesClasses="col-sm-9" backgroundColor="#f5f5f5" style="border-radius: 10px; line-height: 25px; padding-bottom: 20px;" /}}
)))
(% class="row" %)
(((
== Content ==
{{propertiesDisplayer className="Help.Applications.Movies.Code.MoviesClass" title="" backgroundColor="white" properties="content1" blockClasses="col-sm-12" propertyNameClasses="hide" propertyValuesClasses="col-sm-12" /}}
)))
(((
{{propertiesDisplayer className="Help.Applications.Movies.Code.MoviesClass" title="" backgroundColor="white" properties="title1, longText1" propertyNameClasses="col-sm-12" propertyValuesClasses="col-sm-12" blockClasses="col-sm-8" /}}
{{propertiesDisplayer className="Help.Applications.Movies.Code.MoviesClass" title="Properties" titleStyle="text-align: center; font-size: 16px; font-weight: bold; margin-top: 15px; margin-bottom: 10px;" properties="staticList1, databaseList1, date1, number1, boolean1" blockClasses="col-sm-4" propertyNameClasses="col-sm-3" propertyValuesClasses="col-sm-9" backgroundColor="#f5f5f5" style="border-radius: 10px; line-height: 25px; padding-bottom: 20px;" /}}
)))
(% class="row" %)
(((
== Content ==
{{propertiesDisplayer className="Help.Applications.Movies.Code.MoviesClass" title="" backgroundColor="white" properties="content1" blockClasses="col-sm-12" propertyNameClasses="hide" propertyValuesClasses="col-sm-12" /}}
)))

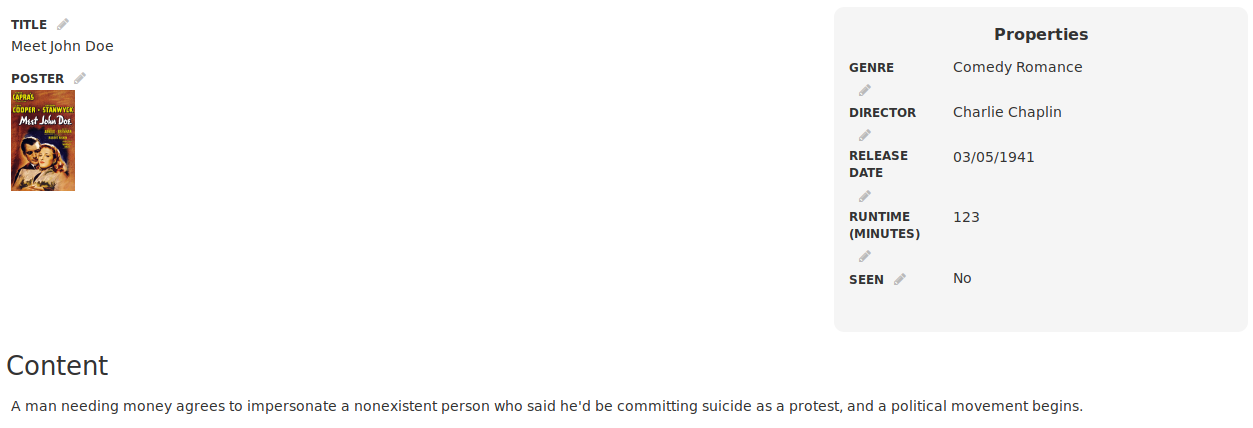

Result
Parameters
| Name | Description | Mandatory | Default |
|---|---|---|---|
| className | Object for which the properties are displayed | No | null |
| properties | A list of ordered properties to be displayed for the object | No | |
| displayEmptyValues | Display or not a null property. | No | true |
| propertyNameClasses | Classes for the name of a property | No | col-sm-6 |
| propertyValuesClasses | Classes for the value of a property | No | col-sm-6 |
| blockClasses | Bootstrap columns for the block. | No | xform col-sm-6 |
| style | CSS for the block. Note that the background color is another parameter. | No | border-radius: 10px; padding: 5px; line-height: 25px; padding-bottom: 20px; |
| title | The title of the block | No | |
| backgroundColor | Background color of the block | No | #f5f5f5 |
| titleClasses | Classes for the title of the block | No | col-sm-12 |
| titleStyle | CSS for the title of the block | No | font-weight:bold; |
| propertyNameStyle | CSS for the propertyName column. | No | |
| propertyValuesStyle | CSS for the propertyValue column. | No |
